Performance Battery Specifications

Rated Operating Temperature -40°F (-40°C) to 140°F (60°C)
All values shown are nominal unless otherwise noted.

NEW PART NUMBER
(Old Part Number)		 Voltage PHCA**
5 sec.
[A]		 MHPCA*
[A]		 MPCA*
[A]		 CCA*
[A]		 HCA*
[A]		 MCA*
[A]		 20 HR
Rate
[Ah]		 10 HR
Rate
[Ah]		 Reserve
Capacity
[Minutes]		 Maximum
Length
[in (mm)]		 Maximum
Width
[in (mm)]		 Maximum Total
Height
[in (mm)]		 Maximum Container
Height
[in (mm)]		 Weight
[lb (kg)]		 Terminal Maximum Torque
[in-lb (Nm)]		 Internal
Resistance
[mΩ]		 Terminal
Layout

ODP-AGM24
(24-725) 		12 1300 755 950 825 63 58 155 10.9
(277)		 6.8
(173)		 8.8
(224)		 8.2
(208)		 51.4
(23.3)		 SAE N/A 4.2 View

ODP-AGM24M
(ELT-AGM24M) 		12 1300 755 950 825 63 58 155 10.9
(277)		 6.8
(173)		 8.8
(224)		 8.2
(208)		 51.4
(23.3)		 SAE and 3/8-16” Stud (Pos.), 5/16-18” Stud (Neg.) 200 (22.6)/100 (11.3) studs only 4.2 View

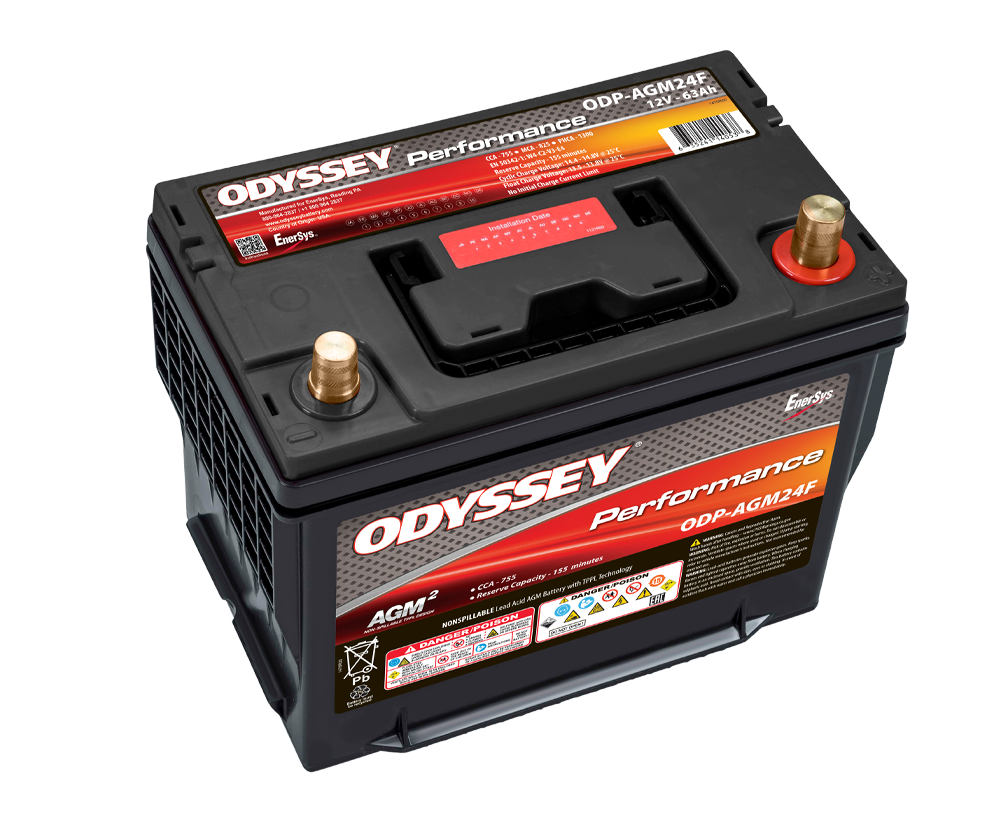

ODP-AGM24F
(ELT-AGM24F) 		12 1300 755 950 825 63 58 155 10.9
(277)		 6.8
(173)		 8.8
(224)		 8.2
(208)		 51.4
(23.3)		 SAE N/A 4.2 View

ODP-AGM25
(25-PC1400) 		12 1200 765 900 850 59 55 117 9.5
(241)		 6.9
(175)		 8.8
(224)		 8.1
(206)		 50.0
(22.7)		 SAE N/A 4.3 View

ODP-AGM27
(ELT-AGM27) 		12 1500 850 1150 975 85 79 182 12.5
(318)		 6.8
(173)		 8.8
(224)		 8.2
(208)		 59.7
(27.1)		 SAE N/A 3.8 View

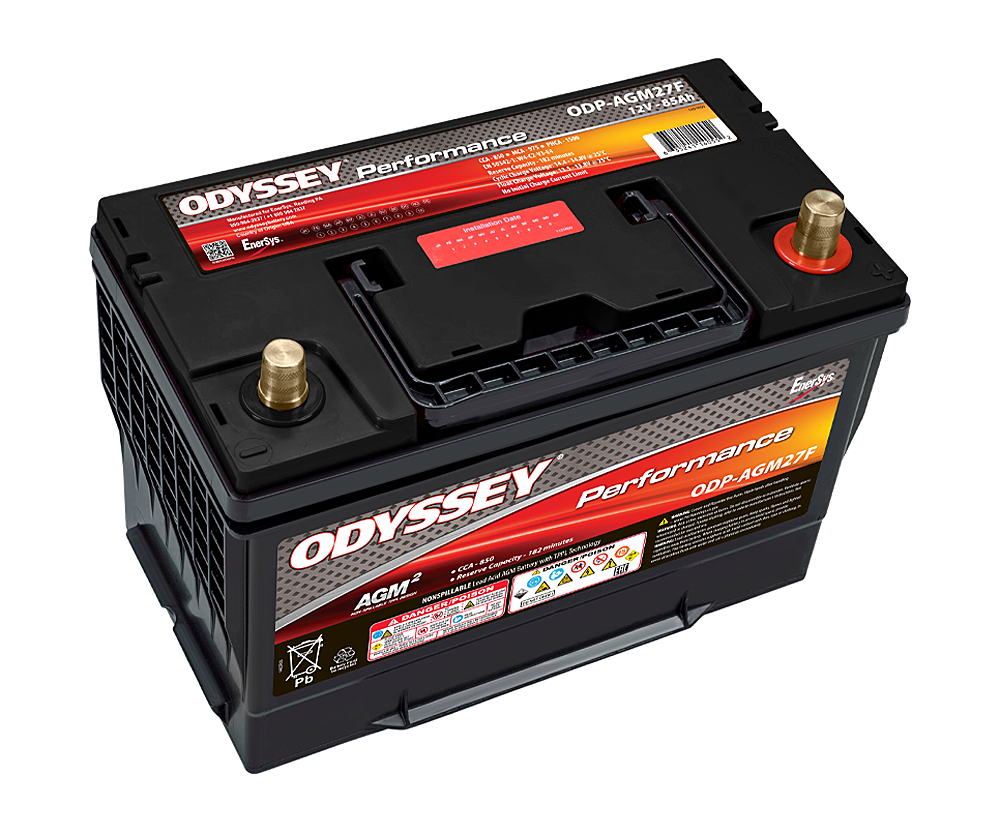

ODP-AGM27F
(ELT-AGM27F) 		12 1500 850 1150 975 85 79 182 12.5
(318)		 6.8
(173)		 8.8
(224)		 8.2
(208)		 59.7
(27.1)		 SAE N/A 3.8 View

ODP-AGM27M
(ELT-AGM27M) 		12 1500 850 1150 975 85 79 182 12.5
(318)		 6.8
(173)		 8.8
(224)		 8.2
(208)		 59.7
(27.1)		 SAE and 3/8-16” Stud (Pos.), 5/16-18” Stud (Neg.) 200 (22.6)/100 (11.3) studs only 3.8 View

ODP-AGM31
(31-925S) 		12 1750 925 1325 1150 100 92 200 13
(330)		 6.8
(173)		 9.6
(244)		 8.6
(218)		 69.5
(31.5)		 3/8-16" Stud 200 (22.6) 2.6 View

ODP-AGM31A
(31-925T) 		12 1750 925 1325 1150 100 92 200 13
(330)		 6.8
(173)		 9.4
(239)		 8.6
(218)		 69.5
(31.5)		 SAE N/A 2.6 View

ODP-AGM31M
(31M-925) 		12 1750 1400 1300 925 1325 1150 100 92 200 13
(330)		 6.8
(173)		 10
(254)		 8.9
(226)		 69.5
(31.5)		 SAE and 3/8-16” Stud (Pos.), 5/16-18” Stud (Neg.) 200 (22.6)/100 (11.3) studs only 2.6 View

ODP-AGM34
(34-790) 		12 1500 800 1200 1000 65 57 130 10.8
(274)		 6.8
(173)		 7.9
(201)		 7.4
(188)		 46.6
(21.1)		 SAE N/A 2.9 View

ODP-AGM34R
(34R-790) 		12 1500 800 1200 1000 65 57 130 10.8
(274)		 6.8
(173)		 7.9
(201)		 7.4
(188)		 46.6
(21.1)		 SAE N/A 2.9 View

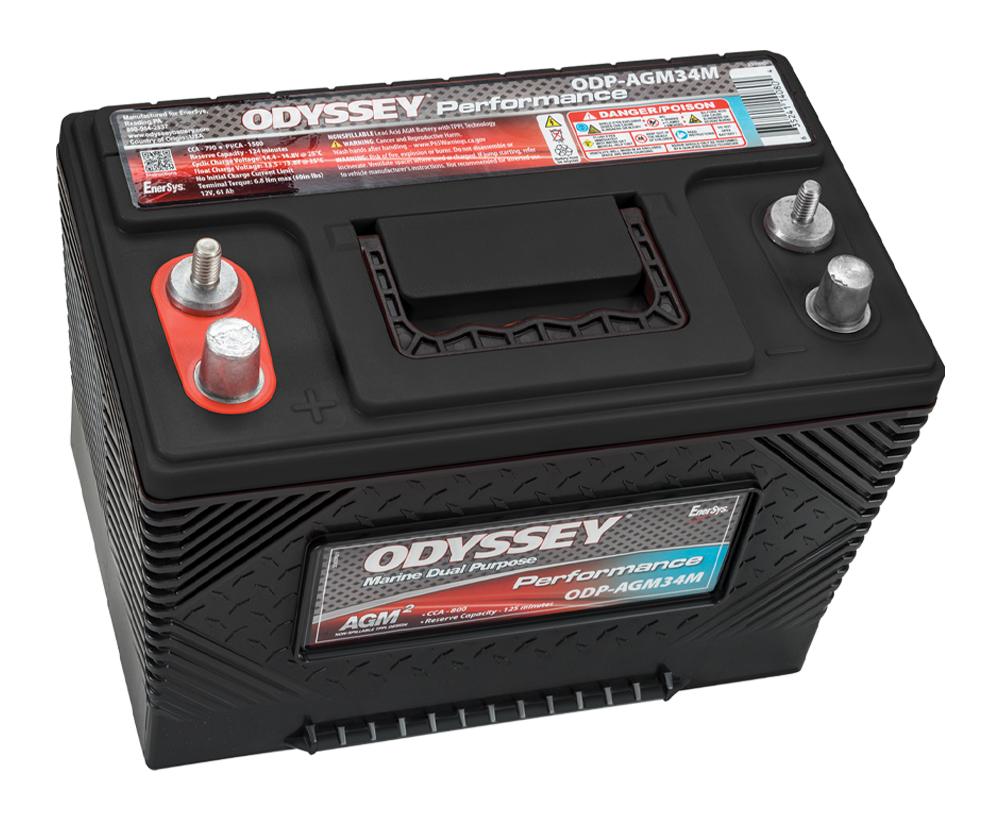

ODP-AGM34M
(34M-790) 		12 1500 1350 1200 800 1200 1000 65 58 130 10.9
(277)		 6.8
(173)		 7.8
(198)		 7.2
(183)		 46.7
(21.2)		 SAE and 3/8-16” Stud (Pos.), 5/16-18” Stud (Neg.) 200 (22.6)/100 (11.3) studs only 2.9 View

ODP-AGM35
(35-PC1400) 		12 1200 765 900 850 59 55 117 9.5
(241)		 6.9
(175)		 8.8
(224)		 8.1
(206)		 50.0
(22.7)		 SAE N/A 4.3 View

ODP-AGM47 H5 L2
(47-650 (LN2-H5)) 		12 1150 650 850 750 64 58 105 9.5
(241)		 6.9
(175)		 7.4
(188)		 7.5
(191)		 41.9
(19.0)		 SAE N/A 3.2 View

ODP-AGM48 H6 L3
(48-720 (LN3- H6)) 		12 1250 760 950 840 70 63 130 10.9
(277)		 6.9
(175)		 7.4
(188)		 7.5
(191)		 48
(21.8)		 SAE N/A 2.8 View

ODP-AGM49 H8 L5
(49-950 (LN5-H8)) 		12 1700 950 1300 1150 95 85 190 13.9
(353)		 6.9
(175)		 7.4
(188)		 7.5
(191)		 62.8
(28.5)		 SAE N/A 4.8 View

ODP-AGM65
(65-760) 		12 1500 762 1200 890 64 59 129 11.8
(300)		 7.2
(183)		 7.6
(193)		 6.8
(173)		 49.8
(22.6)		 SAE N/A 2.3 View

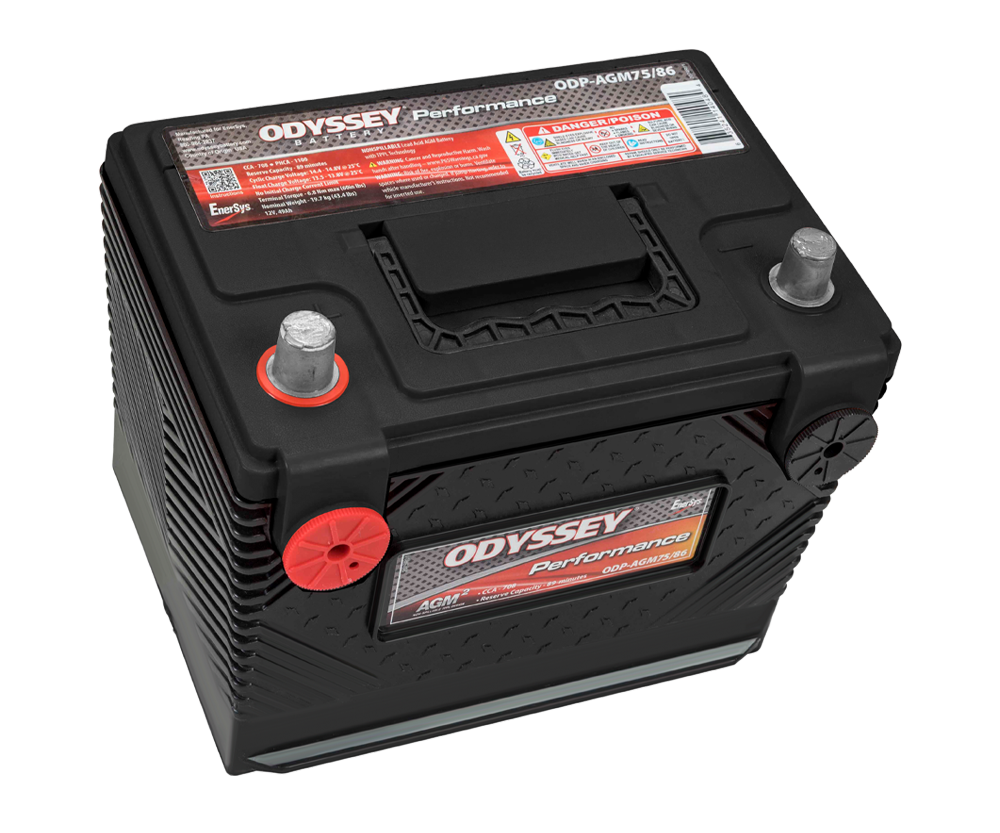

ODP-AGM75 86
(75/86-705) 		12 1100 708 875 760 49 45 89 9.5
(241)		 6.8
(173)		 7.9
(201)		 7.4
(188)		 43.4
(19.7)		 SAE & Side 60 (6.8) side only 2.8 View

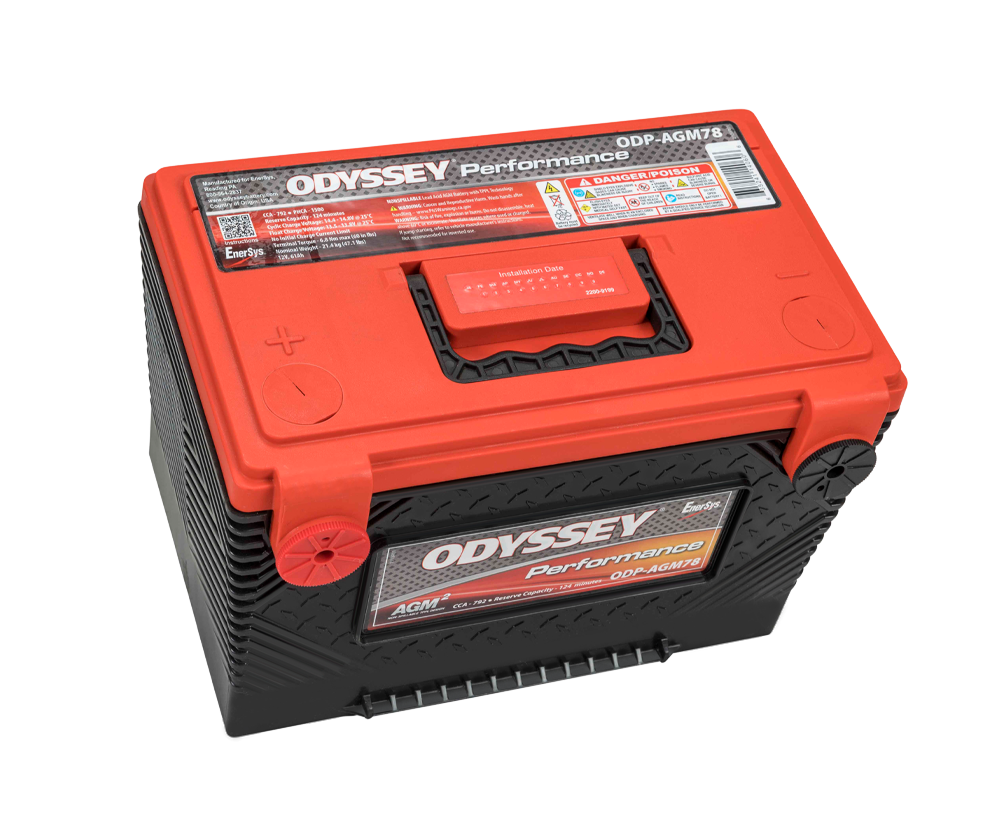

ODP-AGM78
(78-790) 		12 1500 800 1200 1000 65 57 130 10.8
(274)		 6.8
(173)		 7.4
(188)		 7.4
(188)		 47.1
(21.4)		 Side 60 (6.8) 2.9 View

ODP-AGM94R H7 L4
(94R-850 (LN4-H7)) 		12 1500 850 1200 1000 80 76 155 12.4
(315)		 6.9
(175)		 7.4
(188)		 7.5
(191)		 54.8
(24.9)		 SAE N/A 5.7 View

ODP-AGM96R
(96R-600) 		12 1100 600 800 700 52 48 90 9.5
(241)		 6.9
(175)		 6.8
(173)		 6.9
(175)		 40.3
(18.3)		 SAE N/A 2.8 View

ODP-AGM4D
(4D-1300) 		12 2400 1300 1747 1545 170 153 370 20.4
(518)		 8.8
(224)		 8.6
(218)		 8.3
(211)		 117
(53.1)		 SAE N/A NA View

ODP-AGM8DT 		12 2700 1450 2150 1800 220 211 500 20.4
(518)		 10.8
(274)		 9.5
(241)		 8.5
(216)		 152
(68.9)		 3/8-16" Stud; SAE terminal adaptor kit included N/A 1.7 View
  • *Cold Start Performance S.A.E J537 Apr 2016
  • **Pulse Current
