Extreme Series Battery Specifications
| MODEL | Voltage | PHCA** (5 sec.) |
CCA* | HCA | MCA | Nominal Capacity | Reserve Capacity Minutes | Length inches (mm) |
Width inches (mm) |
Height inches (mm) |
Weight lbs (kg) |
Terminal | Torque Specs in-lbs (Nm max) |
Internal Resistance (mΩ) |
Short Circuit Current | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (20 Hr Rate-Ah) | (10 Hr Rate-Ah) | |||||||||||||||
 ODS-AGM28LA (PC925T) |
12 | 900 | 330 | 610 | 480 | 28 | 27 | 48 | 6.57 (166.88) |
6.92 (175.77) |
5.77 (146.56) |
23.8 (10.80) |
SAE | N/A | 5 | 2400A |
 ODS-AGM6M (PC2250) |
12 | 2250 | 1225 | 1730 | 1550 | 114 | 92 | 240 | 11.26 (286.00) |
10.59 (268.99) |
9.17 (232.92) |
86 (39.01) |
SAE and 3/8-16" Stud | 100 (11.3) stud only | 2.1 | 5000A |
 ODX-AGM8DKT (SMS-AGM8DK-S) |
12 | 3125 | 2250 | 2700 | 228 | 500 | 20.5 (520.70) |
11 (279.40) |
9.41 (239.01) |
187 (84.82) |
3/8-16" Stud | N/A | 1.5 | 7500A | ||
 ODX-AGM8DKDT (SMS-AGM8DK-DT) |
12 | 3125 | 2250 | 2700 | 228 | 500 | 20.5 (520.70) |
11 (279.40) |
9.41 (239.01) |
187 (84.82) |
SAE and Front Stud | N/A | 1.5 | 7500A | ||
 ODX-AGM8DK (SMS-AGM8DK) |
12 | 3125 | 2250 | 2700 | 228 | 500 | 20.50 (520.70) |
11.00 (279.40) |
9.41 (239.01) |
187 (84.82) |
SAE | N/A | 1.5 | 7500A | ||
 ODX-AGM78 |
12 | 1500 | 850 | 1250 | 1050 | 68 | 62 | 135 | 10.86 (275.84) |
6.77 (171.96) |
7.34 (186.44) |
49.5 (22.45) |
Side | 60 (6.8) | 2.5 | 3100A |
 ODX-AGM65 (65-PC1750T) |
12 | 1750 | 930 | 1350 | 1070 | 74 | 65 | 135 | 11.84 (300.74) |
7.19 (182.63) |
7.49 (190.25) |
54 (24.49) |
SAE | N/A | 2.0 | 5000A |
 ODX-AGM34R (34R-PC1500T) |
12 | 1500 | 850 | 1250 | 1050 | 68 | 62 | 134 | 10.86 (275.84) |
6.77 (171.96) |
7.87 (199.90) |
49.5 (22.45) |
SAE | N/A | 2.5 | 3100A |
 ODX-AGM34M (34M-PC1500ST) |
12 | 1500 | 850 | 1250 | 1050 | 68 | 62 | 134 | 10.86 (275.84) |
6.77 (171.96) |
7.95 (201.93) |
49.5 (22.45) |
M | 60 (6.8) studs only | 2.5 | 3100A |

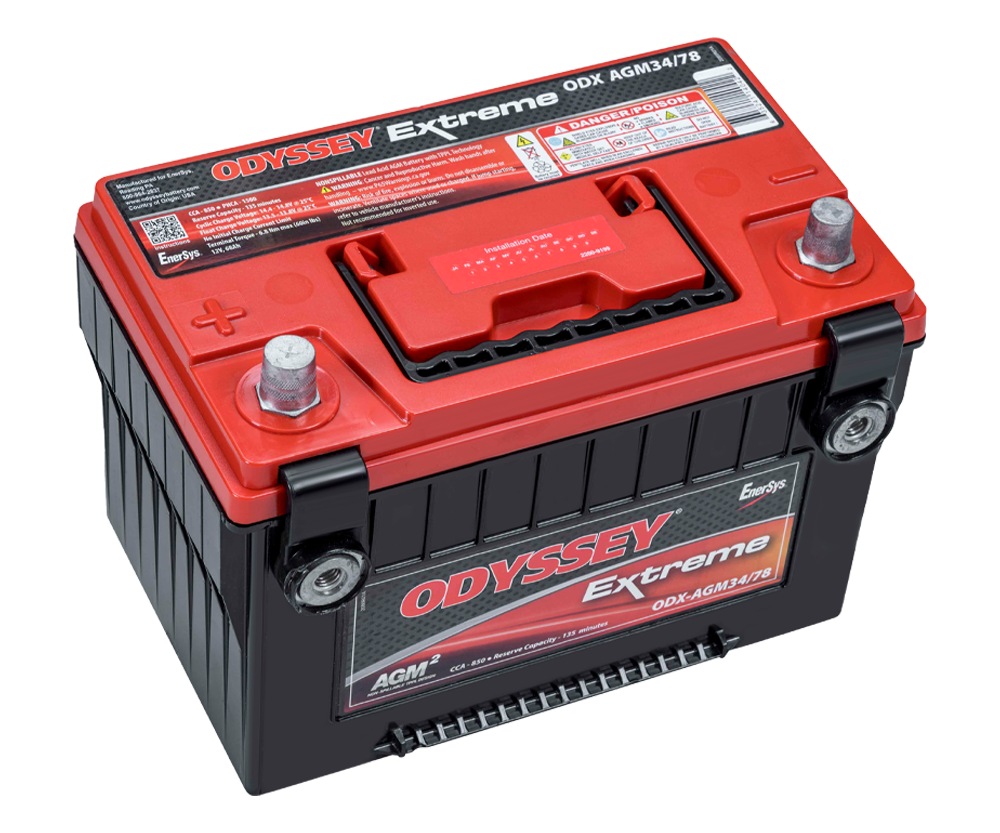

 ODX-AGM34 78 (34-78-PC1500) |
12 | 1500 | 850 | 1250 | 1050 | 68 | 62 | 134 | 10.86 (275.84) |
6.77 (171.96) |
7.88 (200.15) |
49.5 (22.45) |
SAE & Side | 60 (6.8) Side terminal only | 2.5 | 3100A |

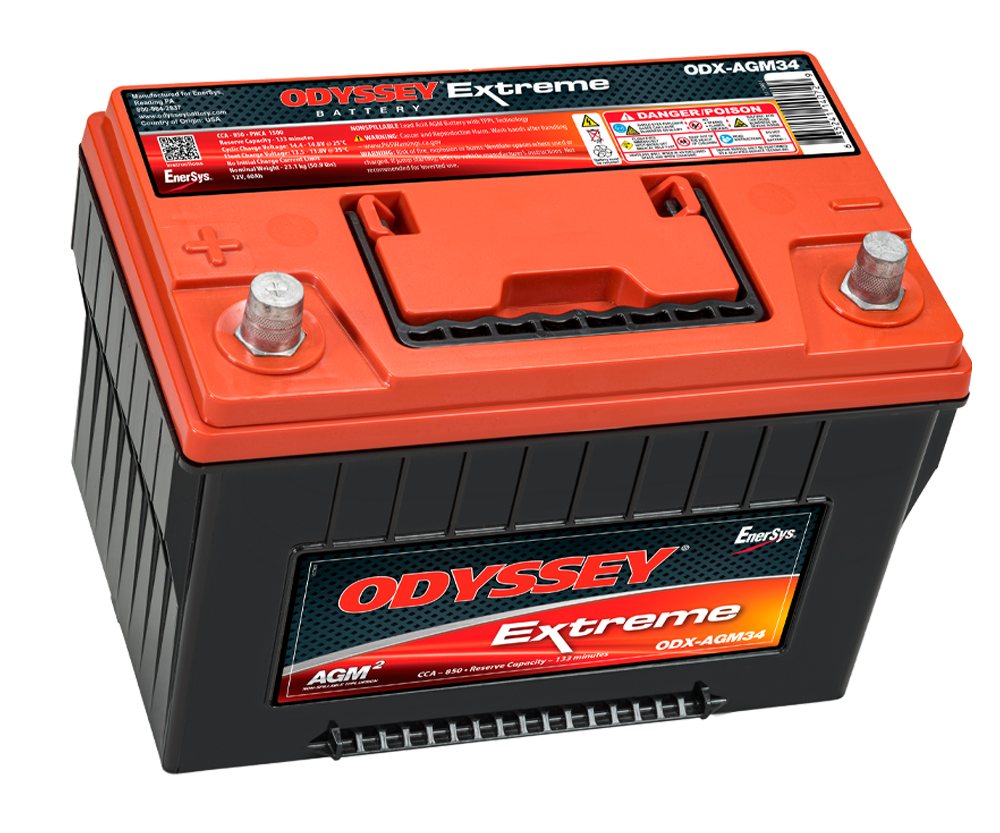

 ODX-AGM34 (34-PC1500T) |
12 | 1500 | 850 | 1250 | 1050 | 68 | 62 | 134 | 10.86 (275.84) |
6.77 (171.96) |
7.94 (201.68) |
49.5 (22.45) |
SAE | N/A | 2.5 | 3100A |
 ODX-AGM31R (31R-PC2150S) |
12 | 2150 | 1150 | 1545 | 1370 | 100 | 92 | 205 | 13.00 (330.20) |
6.80 (172.72) |
9.49 (241.05) |
77.8 (35.29) |
3/8-16" Stud | 200 (22.6) studs only | 2.2 | 5000A |
 ODX-AGM31M (31M-PC2150ST) |
12 | 2150 | 1150 | 1545 | 1370 | 100 | 92 | 205 | 13 (330.20) |
6.8 (172.72) |
9.39 (238.51) |
77.8 (35.29) |
M | 200 (22.6)/100 (11.3) studs only | 2.2 | 5000A |
 ODX-AGM31A (31-PC2150T) |
12 | 2150 | 1150 | 1545 | 1370 | 100 | 92 | 205 | 13 (330.20) |
6.8 (172.72) |
9.67 (245.62) |
77.8 (35.29) |
SAE | N/A | 2.2 | 5000A |
 ODX-AGM31 (31-PC2150S) |
12 | 2150 | 1150 | 1545 | 1370 | 100 | 92 | 205 | 13.00 (330.20) |
6.80 (172.72) |
9.49 (241.05) |
77.8 (35.29) |
3/8-16" Stud | 200 (22.6) Studs only | 2.2 | 5000A |
 ODS-AGM8E (PC310) |
12 | 310 | 100 | 200 | 155 | 8 | 7 | 9 | 5.43 (137.92) |
3.39 (86.11) |
3.9 (99.06) |
5.9 (2.68) |
M4 Receptacle | 8.9 (1.0) | 27.1 | 455A |
 ODS-AGM70S (PC1700S) |
12 | 1550 | 810 | 1325 | 1175 | 68 | 65 | 142 | 13.02 (330.71) |
6.62 (168.15) |
7.37 (187.20) |
60.9 (27.62) |
5/16-18" Stud | 60 (6.8) | 3.5 | 3500A |
 ODS-AGM70MJS (PC1700MJS) |
12 | 1550 | 810 | 1325 | 1175 | 68 | 65 | 142 | 13.03 (330.96) |
6.63 (168.40) |
7.41 (188.21) |
60.9 (27.62) |
5/16-18" Stud | 60 (6.8) | 3.5 | 3500A |
 ODS-AGM70MJA (PC1700MJT) |
12 | 1550 | 810 | 1325 | 1175 | 68 | 65 | 142 | 13.03 (330.96) |
6.63 (168.40) |
7.78 (197.61) |
60.9 (27.62) |
SAE | N/A | 3.5 | 3500A |
 ODS-AGM70MJ (PC1700MJ) |
12 | 1550 | 810 | 1325 | 1175 | 68 | 65 | 142 | 13.03 (330.96) |
6.63 (168.40) |
6.65 (168.91) |
60.9 (27.62) |
M6 Receptacle | 60 (6.8) | 3.5 | 3500A |
 ODS-AGM70A (PC1700T) |
12 | 1550 | 810 | 1325 | 1175 | 68 | 65 | 142 | 13.02 (330.71) |
6.62 (168.15) |
7.75 (196.85) |
60.9 (27.62) |
SAE | N/A | 3.5 | 3500A |
 ODS-AGM70 (PC1700) |
12 | 1550 | 810 | 1325 | 1175 | 68 | 65 | 142 | 13.02 (330.71) |
6.62 (168.15) |
6.61 (167.89) |
60.9 (27.62) |
M6 Receptacle | 60 (6.8) | 3.5 | 3500A |
 ODS-AGM480FT (SMS-AGM480) |
12 | 2440 | 1420 | 1740 | 217 | 477 | 22.05 (560.07) |
4.96 (125.98) |
12.9 (327.66) |
152 (68.95) |
M6 Receptacle | 35 (3.9) | 2.4 | 6200A | ||
 ODS-AGM470FTT (PC1800-FT) |
12 | 1800 | 1300 | 1600 | 1450 | 214 | 190 | 475 | 22.87 (580.90) |
4.92 (124.97) |
12.46 (316.48) |
132.3 (60.01) |
3/8-16" Stud | 80 (9.0) | 3.3 | 3800A |
 ODS-AGM42MJA (PC1200LMJT) |
12 | 1200 | 540 | 860 | 725 | 42 | 40 | 78 | 7.87 (199.90) |
6.66 (169.16) |
7.6 (193.04) |
38.2 (17.33) |
SAE | N/A | 4.5 | 2600A |
 ODS-AGM42LMJA (PC1200MJT) |
12 | 1200 | 540 | 860 | 725 | 42 | 40 | 78 | 7.87 (199.90) |
6.66 (169.16) |
7.6 (193.04) |
38.2 (17.33) |
SAE | N/A | 4.5 | 2600A |
 ODS-AGM42LMJ (PC1200MJ) |
12 | 1200 | 540 | 860 | 725 | 42 | 40 | 78 | 7.87 (199.90) |
6.66 (169.16) |
6.46 (164.08) |
38.2 (17.33) |
M6 Receptacle | 60 (6.8) | 4.5 | 2600A |
 ODS-AGM42LA (PC1200T) |
12 | 1200 | 540 | 860 | 725 | 42 | 40 | 78 | 7.78 (197.61) |
6.53 (165.86) |
7.54 (191.52) |
38.2 (17.33) |
SAE | N/A | 4.5 | 2600A |
 ODS-AGM42L (PC1200) |
12 | 1200 | 540 | 860 | 725 | 42 | 40 | 78 | 7.78 (197.61) |
6.53 (165.86) |
6.40 (162.56) |
38.2 (17.33) |
M6 Receptacle | 60 (6.8) | 4.5 | 2600A |
 ODS-AGM42A (PC1200LT) |
12 | 1200 | 540 | 860 | 725 | 42 | 40 | 78 | 7.78 (197.61) |
6.53 (165.86) |
7.54 (191.52) |
38.2 (17.33) |
SAE | N/A | 4.5 | 2600A |
 ODS-AGM40E (PC1100) |
12 | 1100 | 500 | 800 | 650 | 45 | 43 | 87 | 9.84 (249.94) |
3.82 (97.03) |
8.11 (205.99) |
27.5 (12.47) |
M6 Stud | 35 (3.9) | 5.1 | 2450A |
 ODS-AGM400FT (SMS-AGM400) |
12 | 2150 | 1260 | 1620 | 182 | 396 | 22.05 (560.07) |
4.92 (124.97) |
12.6 (320.04) |
132 (59.87) |
M6 Receptacle | 35 (3.9) | 2.1 | 6000A | ||
 ODS-AGM30E (PC950) |
12 | 950 | 400 | 600 | 500 | 34 | 32 | 60 | 9.84 (249.94) |
3.82 (97.03) |
6.14 (155.96) |
20 (9.07) |
M6 Stud | 35 (3.9) | 7.1 | 1700A |
 ODS-AGM28MJA (PC925LMJT) |
12 | 900 | 330 | 610 | 480 | 28 | 27 | 48 | 6.64 (168.66) |
7.05 (179.07) |
5.83 (148.08) |
23.8 (10.80) |
SAE | N/A | 5 | 2400A |
 ODS-AGM28MJ (PC925LMJ) |
12 | 900 | 330 | 610 | 480 | 28 | 27 | 48 | 6.64 (168.66) |
7.05 (179.07) |
4.77 (121.16) |
23.8 (10.80) |
M6 Receptacle | 60 (6.8) | 5 | 2400A |
 ODS-AGM28LMJA (PC925MJT) |
12 | 900 | 330 | 610 | 480 | 28 | 27 | 48 | 6.64 (168.66) |
7.05 (179.07) |
5.83 (148.08) |
23.8 (10.80) |
SAE | N/A | 5 | 2400A |
 ODS-AGM28LMJ (PC925MJ) |
12 | 900 | 330 | 610 | 480 | 28 | 27 | 48 | 6.64 (168.66) |
7.05 (179.07) |
4.77 (121.16) |
23.8 (10.80) |
M6 Receptacle | 60 (6.8) | 5 | 2400A |
 ODS-AGM28L (PC925) |
12 | 900 | 330 | 610 | 480 | 28 | 27 | 48 | 6.57 (166.88) |
6.92 (175.77) |
4.7 (119.38) |
23.8 (10.80) |
M6 Receptacle | 60 (6.8) | 5 | 2400A |
 ODS-AGM28 (PC925L) |
12 | 900 | 330 | 610 | 480 | 28 | 27 | 48 | 6.57 (166.88) |
6.92 (175.77) |
4.7 (119.38) |
23.8 (10.80) |
M6 Receptacle | 60 (6.8) | 5 | 2400A |
 ODS-AGM220FT (SMS-AGM220) |
12 | 1750 | 950 | 1260 | 105 | 241 | 11.3 (287.02) |
4.24 (107.70) |
11.3 (287.02) |
74 (33.57) |
M6 Receptacle | 35 (3.9) | 2.6 | 3500A | ||
 ODS-AGM16LMJA (PC680MJT) |
12 | 520 | 170 | 350 | 280 | 16 | 16 | 24 | 7.27 (184.66) |
3.11 (78.99) |
7.55 (191.77) |
15.4 (6.99) |
SAE | N/A | 7 | 1800A |
 ODS-AGM16LMJ (PC680MJ) |
12 | 520 | 170 | 350 | 280 | 16 | 16 | 24 | 7.27 (184.66) |
3.11 (78.99) |
6.43 (163.32) |
15.4 (6.99) |
M6 Receptacle | 50 (5.6) | 7 | 1800A |
 ODS-AGM16L (PC680) |
12 | 520 | 170 | 350 | 280 | 16 | 16 | 24 | 7.15 (181.61) |
3.01 (76.45) |
6.36 (161.54) |
15.4 (6.99) |
M6 Receptacle | 50 (5.6) | 7 | 1800A |
 ODS-AGM16CL (PC625) |
12 | 540 | 220 | 400 | 330 | 18 | 17 | 26 | 6.7 (170.18) |
3.9 (99.06) |
6.95 (176.53) |
13.2 (5.99) |
M6 Receptacle | 40 (4.5) | 7 | 1800A |
 ODS-AGM16B (PC535) |
12 | 535 | 200 | 300 | 265 | 14 | 13 | 21 | 6.7 (170.18) |
3.9 (99.06) |
6.24 (158.50) |
12 (5.44) |
M6 Receptacle | 40 (4.5) | 8 | 1000A |
 ODS-AGM15LMJ (PC545MJ) |
12 | 460 | 150 | 280 | 220 | 13 | 12 | 18 | 7.02 (178.31) |
3.39 (86.11) |
4.92 (124.97) |
11.4 (5.17) |
M6 Receptacle | 50 (5.6) | 10 | 1200A |
 ODS-AGM15L (PC545) |
12 | 460 | 150 | 280 | 220 | 13 | 12 | 18 | 6.91 (175.51) |
3.29 (83.57) |
4.89 (124.21) |
11.4 (5.17) |
M6 Receptacle | 50 (5.6) | 10 | 1200A |
 ODS-AGM080FT (SMS-AGM80) |
12 | 820 | 400 | 580 | 37 | 77 | 9.8 (248.92) |
3.8 (96.52) |
8.2 (208.28) |
31 (14.06) |
M6 Receptacle | 35 (3.9) | 3.9 | 1500A | ||
- *Cold Start Performance S.A.E J537 JUNE 82
- **Pulse Current
- † Can be fitted with brass automotive terminal
- Optional metal jackets available on PC545, PC680, PC925, PC1200, PC1700 and 31-PC2150
- Operating temperature range:
- PC310 and PC1800-FT: -40°F (-40°C) to 122°F (50°C)
- PC370, PC950 and PC1100: -40°F (-40°C) to 122°F (50°C)
- PC535 and PC625: -40°F (-40°C) to 113°F (45°C)
- PC545, PC680, PC925, PC1200 and PC1700 without metal jacket: -40°F (-40°C) to 113°F (45°C)
- PC545, PC680, PC925, PC1200 and PC1700 with metal jacket: -40°F (-40°C) to 176°F (80°C)
- PC2250: -40°F (-40°C) to 104°F (40°C)
- All other models: -40°F (-40°C) to 176°F (80°C)
